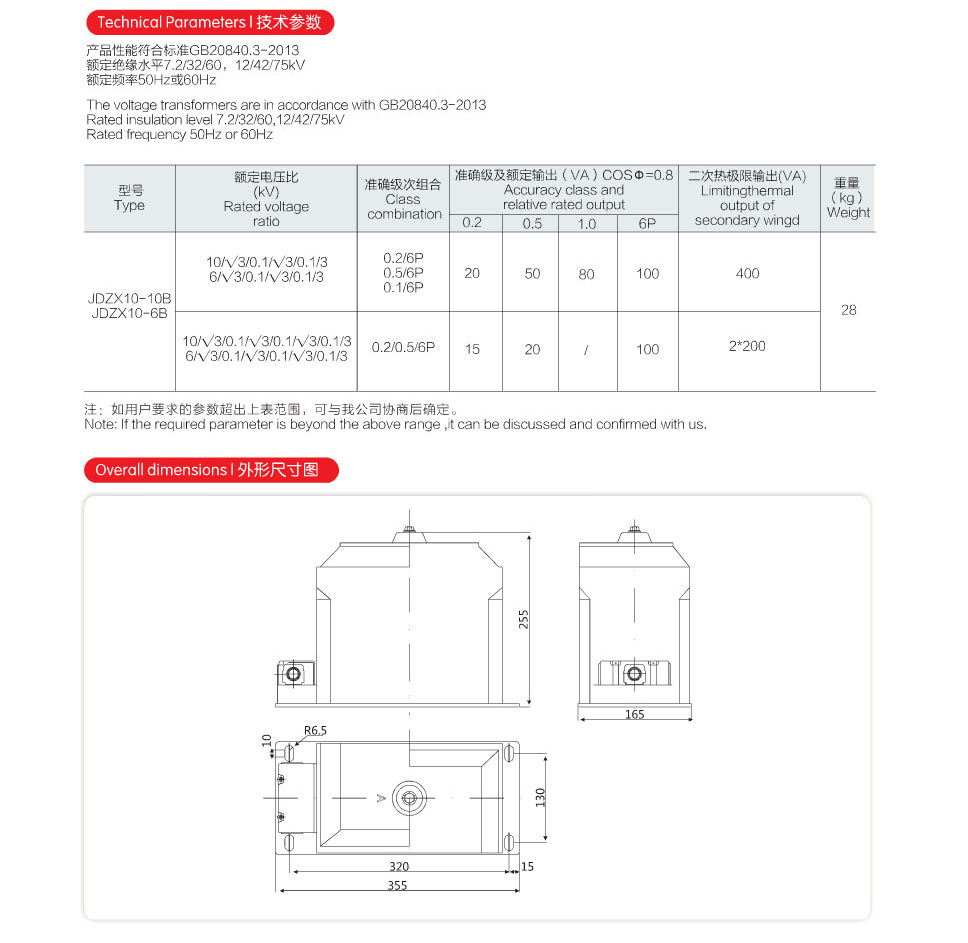

一、技术参数
产品性能符合标准GB20840.3-2013
额定绝缘水平7.2/32/60,12/42/75kV
额定频率50Hz或60Hz
The voltage transformers are in accordance with GB20840.3-2013
Rated insulation level 7.2132/60,12/42/75kV
Rated frequency 50Hz or 6OHz
|
型号
Type
|
额定电压比 (kv)
Rated voltage ratio
|
准确级次组合
Class combination
|
准确级及额定输出(VA)
COSΦ=0.8 Accuracy class and relative rated output
|
二次热极限输出（VA)
Limitingthermal output of secondary wingd
|
重量 (kg)
Weight
|
|
0.2
|
0.5
|
1.0
|
6P
|
|
JDZ×10-10A JDZ×10-6A
|
10/v3/0.1/√3/0.1/3
|
0.2/6P 0.5/6P 0.1/6P
|
20
|
50
|
80
|
100
|
400
|
28
|
|
6/√3/0.1/√3/0.1/3
|
|
10/√3/0.1/√3/0.1/√3/0.1/3
|
0.2/0.5/6P
|
15
|
20
|
/
|
100
|
2*200
|
|
6/√3/0.1/√3/0.1/√31/0.1/3
|
注:如用户要求的参数超出上表范围，可与我公司协商后确定。
Note: If the required parameter is beyond the above range ,it can be discussed and confirmed with us.

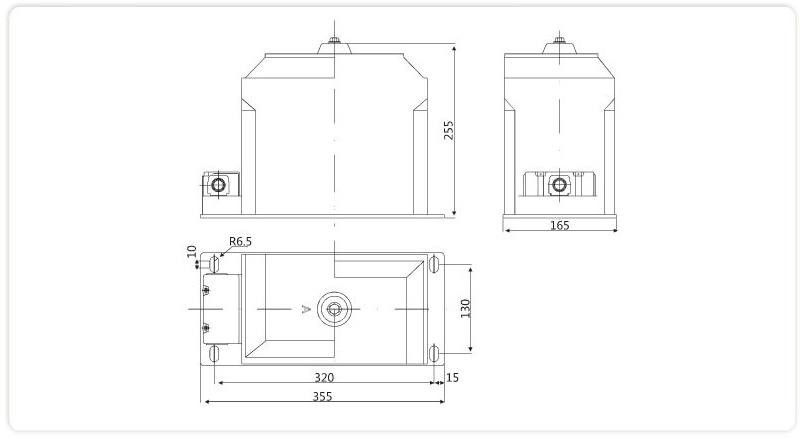

二、外形尺寸图
